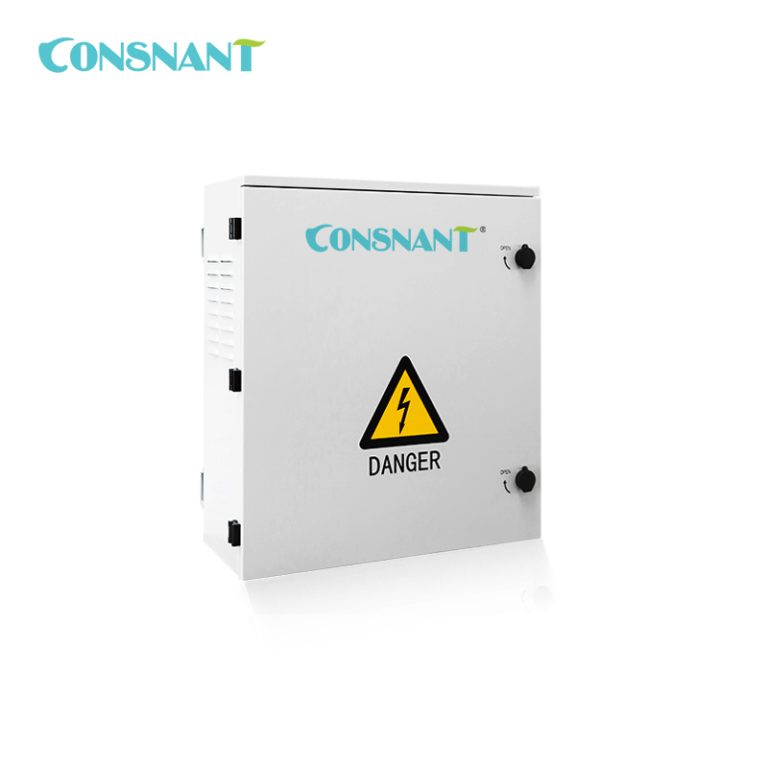

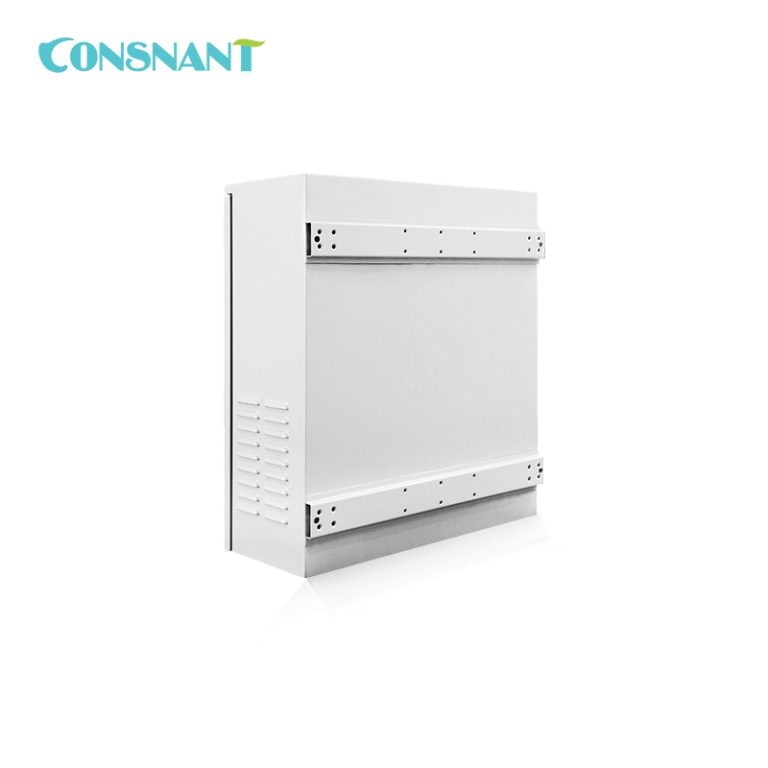

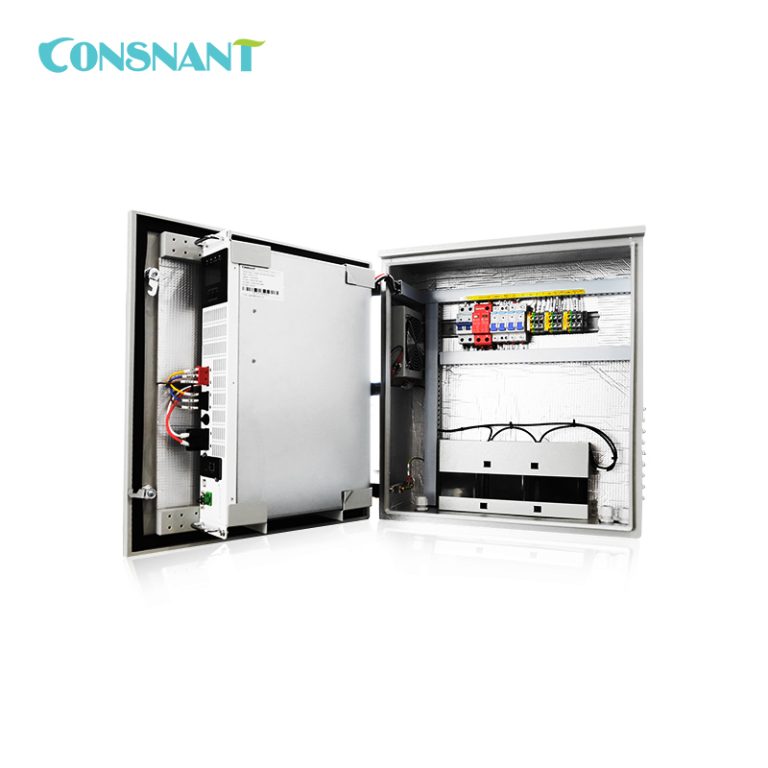

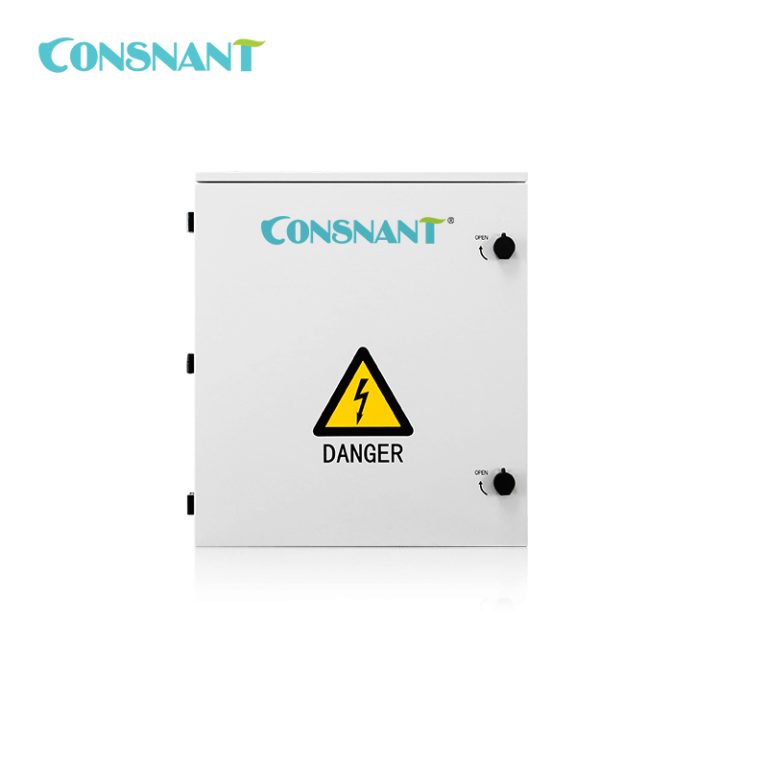

Pole/Wall Mounted Outdoor UPS 1KVA/800W

Item No	CNW110L-1K
Order (MOQ)	10 pcs
Payment	T/T
Product Origin	China
Color	RAL7035
Shipping Port	Shenzhen
Lead Time	3 weeks
Weight	25 Kg

Item No

CNW110L-1K

Order (MOQ)

10 pcs

Payment

T/T

Product Origin

China

Color

RAL7035

Shipping Port

Shenzhen

Lead Time

3 weeks

Weight

25 Kg

●This UPS is a precision piece of equipment with 16 bit microprocessor and advanced software programming technology. High frequency SPWM is created to control the inverter of UPS. The simplified control circuit, enhances the stability of UPS and real-time performance. That makes UPS respond the variety of external environment rapidly and ensures the control is compact and reliable.
● Advanced voltage compensation technique, makes the input voltage range from 115VAC to 295VAC, using batteries less, enhancing the adaptability against the bad power condition.
● Advanced wide input frequency technique, makes the input frequency range from 45Hz to 55Hz, compatible with generator under variable circumstance.
● The advanced PFC technology, improves the input power factor close to utility, raises the power efficiency, removes the harmonic noise from UPS to utility, lowers UPS operational cost, it’s really a good environmental protection power supply.
● Standard bypass function, when the UPS faults, it can transfer to bypass mode and provide alarm signal.
● Smart management function. If main power blackout, ups will transfer to backup mode to supply loads. When battery voltage is low, ups would protect itself and shuts down. When the main power recovers, the UPS would check the main power itself, if the main power is also normal, ups would turn on automatically to supply loads; if main power is abnormal, UPS would just turn on charger to charge the battery until the main power is normal.
● DC start function, when there is no main power; UPS can be turned on by battery, to meet the user’s emergency needs. The cold start function is quite strong. UPS can be cold started on full load situation.

Model	CNW110L-1K
Capacity	1kVA/0.8kW
Input
Nominal Voltage	220/230/240VAC, L+N+PE
Voltage Range	100-300VAC
Frequency	40-70Hz
Power Factor	＞0.99
THDi	≤4% (linear load); ≤5% (non-linear load)
Output
Nominal Voltage	220/230/240VAC, L+N+PE
Voltage Regulation	±1%
Frequency	50/60Hz±0.1%
Crest Ratio	3:01
THDu	≤2% (linear load); ≤5%（non-linear load）
Transfer Time	Line mode to battery mode,0ms; inverter to bypass ,4ms (typical)
Waveform	Pure sine wave
Overload Time	Line mode: Battery mode:
	30min@102%-110% load 1min@102%-110% load
	10 min@110-130% load 10s@110-130% load
	30s@130%-150% load 3s@130%-150% load
	200ms@＞150% load 200ms@＞150% load
Efficiency
Line Mode	94.50%
Battery Mode	88.5%(36VDC)
ECO Mode	98%
Battery
Type	Lithium-ion battery
Voltage	36VDC
Battery Number	12.8VDC 8Ah*3pcs
Charging Current	4A
Charging Mode	Two/Three-period charging
Management
Intelligent Port	RS232/USB port/SNMP card (optional)/Dry contact kit (optional)
Environment
Operation Temperature	0-55℃
Relative Humidity	0-95%(non-condensing)
Noise	＜50dB@1 meter
Altitude	Up to1000m without derating

products

Pole/Wall Mounted Outdoor UPS 1KVA/800W

share

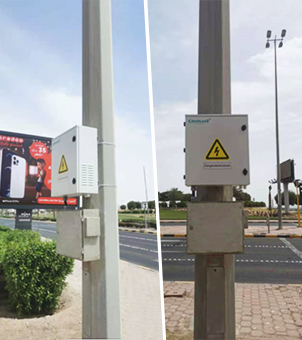

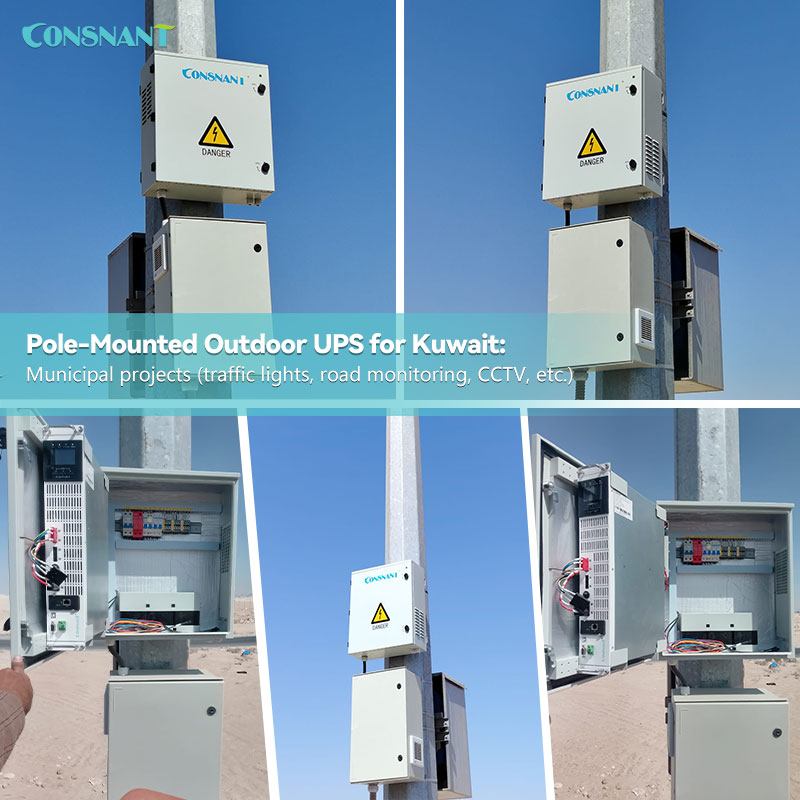

Outdoor security municipal project in Kuwait

Traffic lights and surveillance cameras in Kuwait

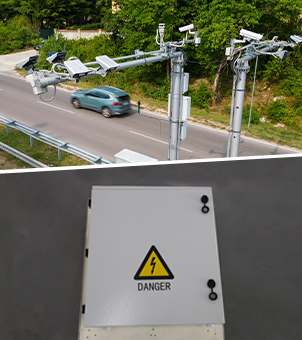

Road security camera project in oman
