Off-grid Solar Power System 5.5KW with Lithium Battery (5500W SOLAR SYSTEM)
Package included: 5500W 48V Solar Hybrid Inverter, Solar Panel, 48V 150Ah LiFePO4 Lithium lron Phosphate Battery, Y Branch Solar Panel Connector, Mounting Brackets, 16ft/5M 8AWG Solar-Controller Cable & 16ft 11AWG Solar Extension Cable, 1ft 10AWG Lithium Battery Cable, Combiner Box .
Installation GuideInstallation Guide
Step 1: Connect the 48V 150Ah battery pack to the contoller
Step 2: Connect each two 12V 200W solar panels in series to make twelve 24V 400W
solar panel groups
Step 3: Connect the twelve 24V 400W solar panel groups to the 4 string conbiner box
Step 4: Connect the combiner box to the controller, make sure the combiner box is off
Step 5: Connect the inverter with the battery pack
Step 6: Turn on the inverter and done

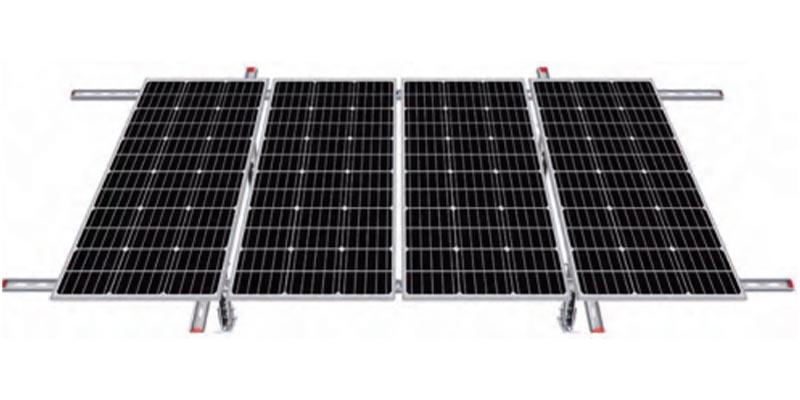

SOLAR PANEL MOUNTING SYSTEM
STURDY LONG RODS SUPPORT FOR 1-4 PCS PANELS
DURABLE STAINLESS STEEL FOR RUST PREVENTION
ADJUSTBLE ANGLE FOR DIFFERENT LATITUDES AND STATES

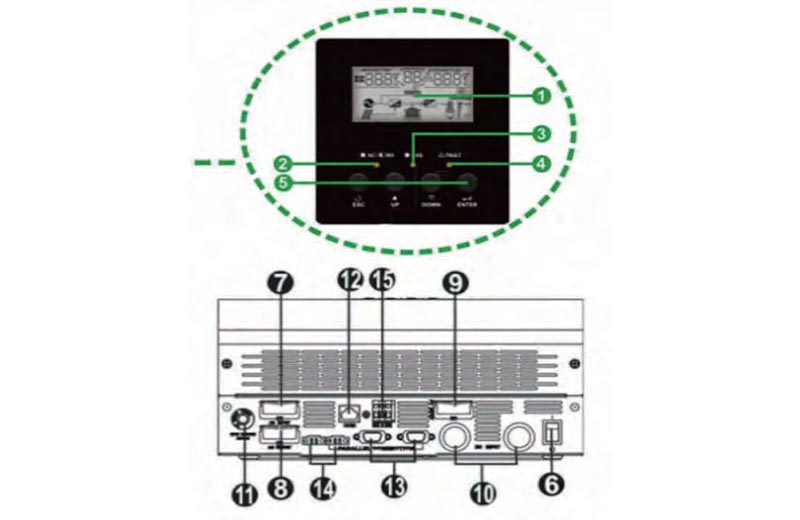

Solar Hybrid Inverter
1. LCD display
2. Status indicator
3. Charging indicator
4. Fault indicator
5. Function buttons
6. Power on/off switch
7. AC input
8. AC output
9. PV input
10. Battery input
11. Circuit breaker
12. RS232 communication port
13. Parallel communication cable (only for parallel model)
14. Current sharing cable (only for parallel model)
15. Dry contant
About 5.5KW Solar System Solution
(ldeally Output power): The power of 19.2KWh per day under 4 hours full sunshine by the 4800W solar panel system, very suitable for home,shed, cabin,farm or other energy backup, and it will provide enough power for portable ac,air condition,TV, refrigerator,coffee maker, microwave and other AC 110V/220V devices.
(Durable Solar Panel): Monocrystallin panel`s compact design with the size of 58.3”*26.2”*1.4” (Length, width and height).Aluminum frame and tempered glass panel extended outdoor use,allowing the panels to lastfor decades.The IP66 waterproof panel can also withstand high winds(2400Pa) and sonw losds (5400Pa).
(Hybrid solar charger inverter ): Composed of 6200W 48V DC-110V/240V AC pure sine wave inverter and 80A MPPT controller.Not only can it be used off-grid,but when there is no sunlight,it can also receive electricity from the grid to charge the battery to meet all-weather use,which will protect appliance life with no electromagnetic pollution and has 99.9% high efficiency power.
(High Capacity Li-Battery Bank ): With 21600 Wh of 3pcs 48V 150Ah lithium batteries, which have higher charging/discharging efficiency and more than 6000 times deep cycles than lead acid batteries.Built-in BMS chips(battery management system),can also prevent the lithium battery from getting damaged and provide double protections.
(Warm After-Sales Service ): The ready-to-use solar power system includes 24pcs 200W solar panel,1pc 5500W 48V hybrid solar charger inverter,3pcs 48V 150Ah LiFePo4 batteries,1 pc 4 strings PV combiner box as well as accessories needed.
These items will be sent in seperate packages and 2 year WARRANTY is provided. Any other questions,please feel to contact us.
Lithium LifePO4 pack
- High Energy Density
LiFePO4 batteries store much more energy compared with lead-acic batteries. LiFePO4 batteries have a deep charge rate providing maximum versatiliy. - Eco Friendly
LiFePO4 batteries use more abundant and non-toxic materials that can be. produced with less energy and easy to recycle. - Powerful
LiFePO4 are nerarly 4 times as powerful as SLA and can provide more time of use. Long Service Life LiFePO4 Batteries These batteries will provide you with 6000 complete charge and discharge cycles. - Light Weight
Conveniently light as well as powerful making LiFe Batteries very versatile. - High Efficiency
LiFePO4 Batteries have a flatter discharge curve that holds above 48 volts for up to 90% of its usage capacity.It consumes an even amount of energy efficiently,allowing for longer use and without significant fluctuations in energy consumption.By contrast, Sealed Lead-Acid Batteries (SLA) increase their consumption rate as they discharge and this consumption rate becomes even greater when SLA Batteries hit 50%.

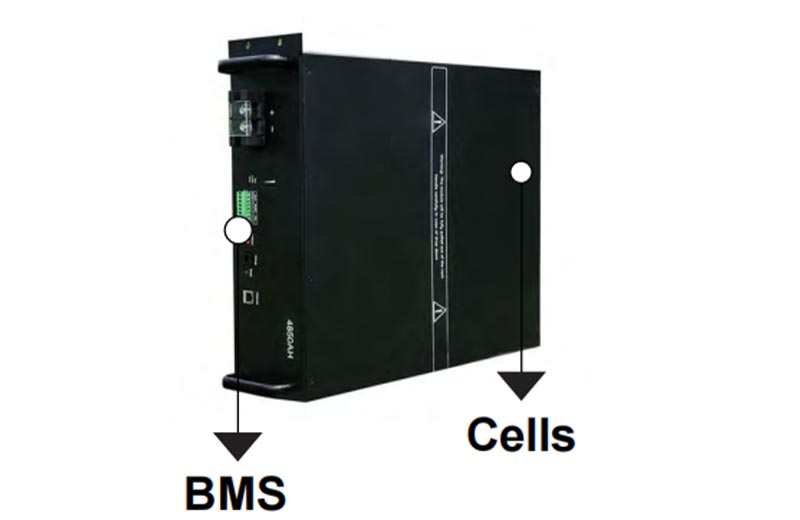

LifePO4 INTERNAL COMPONENTS
BMS
Our battery management system utilizes only the highest quality components and is manufactured specficially for our LiFePO4 cells to boost performance and maximize lifespan, as opposed to competitors who source boards and parts from various, unreliable suppliers.
Cells
•Our cells undergo a strict and selective quality control process that ensures only the best A-grade cells make it into the final battery.
•The cells are certified with UL1642 as a testament totheir safety and performance.
•Any cell that reaches the final stage of production is confidently given an official rating of up to 7000 cycles.
5500W Complete Solar System
5500W Off-grid Solar power system, generating 19.2KWh per day depends on the 4 hours sunlight availability, which can be able to satisfy your daily household electricity consumption. This kit is great choice for holiday homes, cabins, workshops, remote offices, stables,and other places where is lack of sufficient electricity.
This is a complete solar system includes inverter and lithium battery, no need to buy extra parts or accessories.EncIosed the user manual on our page, helps you to install this system.By the way, please note that the system will be shipped in several packages to prevent the items from getting damaged.

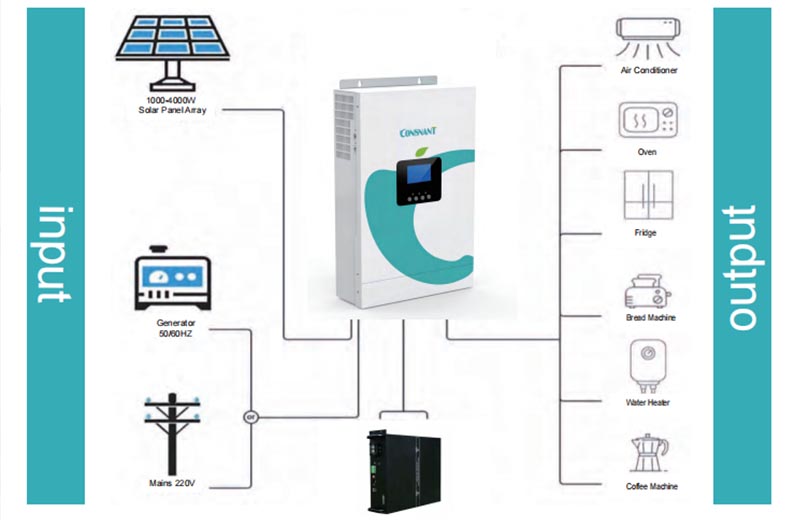

HOW IT WORKS
