Solution Overview
Urban traffic control, roadside surveillance and outdoor security infrastructure face universal power risks: grid voltage fluctuation, sudden blackouts, lightning surge, high/low temperature, rain and dust erosion. Without stable outdoor backup power, traffic signal failure, surveillance footage loss and telecom device shutdown will trigger safety hazards and operation losses.
CONSNANT’s full-series pole & wall-mounted IP55 outdoor UPS delivers one-stop power protection solutions for municipal traffic, road monitoring and security projects. We launch three core models covering low-power small monitoring, medium-power all-in-one surveillance & traffic equipment, and high-capacity multi-device integrated scenarios:
- CNW110-0.6K | 600VA/360W Line-Interactive VRLA Outdoor UPS
- CNW110-1K | 1000VA/600W Line-Interactive VRLA Outdoor UPS
- CNW110L-1K | 1KVA/800W Online Double-Conversion Lithium UPS
- CNW110 Series 1–3KVA IP55 Lithium Cabinet UPS
All products adopt IP55 weatherproof cold-rolled steel cabinet, support pole/wall/floor mounting, integrate AVR voltage stabilization, lightning protection and SNMP remote monitoring, perfectly matching global municipal security projects in Nepal, Kuwait, Oman, Bahrain and other regions.
Outdoor Infrastructure Pain Points & Solution Value
1. Core Project Challenges
Road traffic signals, roadside surveillance cameras, highway vehicle detectors and outdoor communication micro-base stations are fully exposed to open-air environments, facing 5 major power hazards:
- Severe grid fluctuation: Rural/suburban mains voltage fluctuates between 100–300VAC, causing camera black screen, traffic light flicker and NVR recording interruption
- Complex extreme climates: High temperature up to +55℃, low temperature down to -40℃, heavy rain, dust, sandstorm, salt fog and high humidity (0–95% non-condensing RH) erode common power supplies
- Lightning surge risk: Unprotected equipment short-circuits during thunderstorms, paralyzing road monitoring and traffic control systems
- Scattered pole deployment: Unattended sites without on-site maintenance staff, requiring full remote monitoring capability
- Diversified load power demand: From single mini cameras to multi-camera highway stations + telecom integrated loads, tiered capacity matching is required
2. CONSNANT Four-Matrix Outdoor UPS System
- CNW110-0.6K (600VA/360W): Compact line-interactive VRLA UPS for small single-camera low-power scenes
- CNW110-1K (1000VA/600W): Enlarged capacity lead-acid model for 4–6 channel CCTV & small traffic intersections
- CNW110L-1K (1KVA/800W): Online double-conversion pure sine lithium UPS for urban main road multi-camera & traffic light cabinets
- CNW110 Series 1–3KVA Large Lithium Cabinet (1K/2K/3KVA): High-capacity vertical integrated cabinet for highway monitoring stations & outdoor micro base stations
3. Core Advantages of CONSNANT Outdoor UPS Solution
- Full IP55 waterproof/dustproof enclosure, anti-corrosion outdoor powder coating
- Drawer-type UPS module, front door full access for maintenance without cabinet disassembly
- Built-in surge lightning protection + wide-range AVR automatic voltage regulation
- Optional SNMP network card for cloud remote monitoring of battery, load and fault alarm
- Dual battery options: maintenance-free VRLA lead-acid & long-life lithium iron phosphate

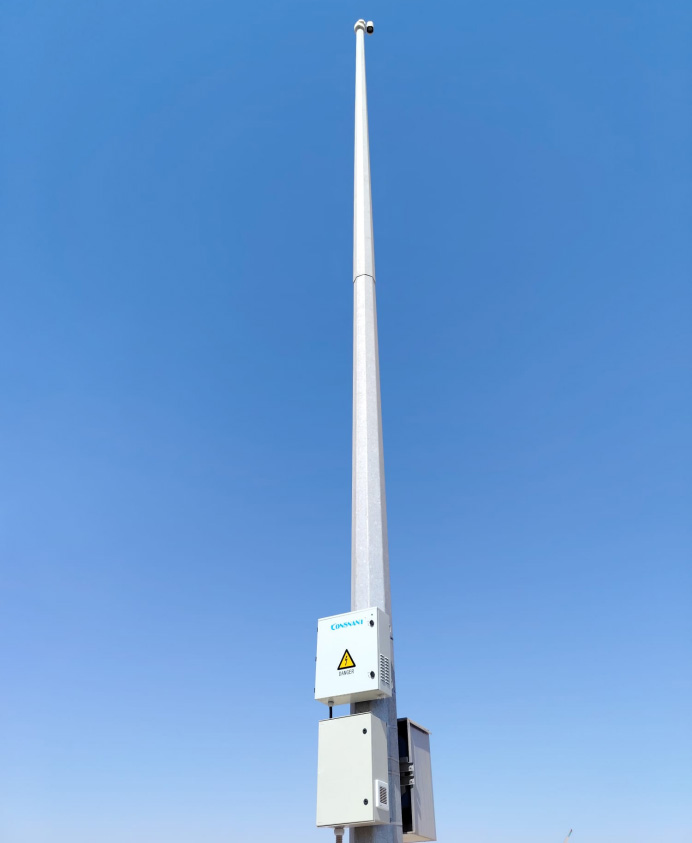

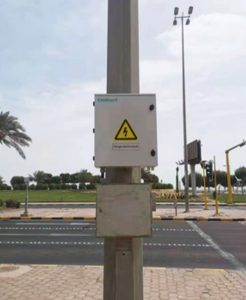

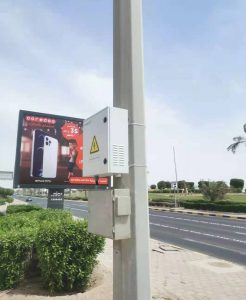

- Flexible installation: pole mounting bracket, wall backboard, floor base available
- Customization Support: Cabinet color, AC output port quantity, lithium battery capacity, SNMP monitoring function, environmental sensor expansion all OEM customizable

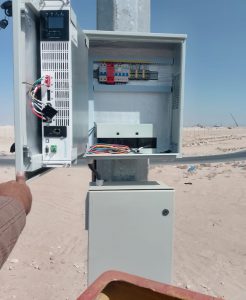

Unified Standard Cabinet Internal Architecture
Based on official exploded view & internal wiring diagrams, all 4 product lines adopt standardized layered layout for unified construction & maintenance:
- Outer Shell Layer : IP55 anti-corrosion cabinet, sealed waterproof door frame, thermal insulation lining, safety high-voltage warning sign
- Drawer UPS Module Layer : Independent pull-out unit with dedicated heat dissipation duct, integrated AVR, inverter, charging circuit & main control board
- Power Distribution Layer : Pre-assembled input circuit breaker, SPD lightning protection switch, battery isolation breaker, multi-group AC output PDU terminals, pre-labeled wiring terminals for fast site construction
- Independent Battery Compartment : Separated strong/weak current safety isolation, compatible with VRLA lead-acid and lithium battery packs
- Communication Interface Layer : Standard SNMP card slot, RS232, USB, dry contact alarm terminals, supporting central cloud monitoring
Solution Conclusion
CONSNANT CNW110 full-series outdoor UPS matrix (0.6K/1K lead-acid, 1K online lithium, 1–3KVA lithium cabinet) fully covers all power demand scenarios of traffic lights, CCTV, road monitors and outdoor security infrastructure from small single equipment to large integrated stations. All products feature IP55 all-weather protection, drawer modular easy maintenance, dual battery options and intelligent remote monitoring, completely solve core power pain points of scattered outdoor municipal equipment. For engineering For integrators, traffic bureaus and security contractors, this tiered one-stop outdoor power solution effectively reduces long-term operation failure rate and after-sales maintenance cost.
For customized capacity, cabinet size or special environmental monitoring functions, contact CONSNANT professional technical team for tailor-made outdoor uninterruptible power solutions.
