CNH110R Series 1-20KVA 1Ph/3Ph Mount High Frequency Online UPS

1Ph/1Ph & 3Ph/1Ph

Model Number: CNH110R 1-10KVA/CNH310R 10-20KVA

Nominal Capacity: 1-20KVA

Nominal Voltage: 208/220/230/240VAC

Maximum Input Voltage Range: 110 – 300VAC

Nominal Frequency: 50/60HZ ± 6Hz (Default), ± 10Hz (Optional)

Application field:

Data Center
Telecom
Local Area Networks
Servers

Chat Now

Description

The CNH110R series covers single-phase/there-phase rack-mount high-frequency online UPS ranging from 1kVA to 20kVA, fully developed and manufactured by CONSNANT. Adopting true double-conversion online topology and full DSP digital control, this series delivers clean, stable, zero-switching-delay AC power for critical IT and industrial equipment.

Compact 19-inch rack-mounted design saves cabinet space, available in built-in battery (S) and external battery (L) two versions for all power tiers. With ultra-wide voltage & frequency input, high PFC, high efficiency, dust-proof and anti-corrosion structure, the UPS adapts to harsh power grids and complex industrial environments. Widely applied in data centers, telecom rooms, server rooms, LAN systems, finance, government, transportation, manufacturing and education industries.

Core Advantages &Feature：

1. Zero Transfer Time True Online Double Conversion

Seamless switch between mains AC mode and battery backup mode with 0ms transfer time; inverter to bypass switch only takes 4ms. Fixed frequency output function ensures uninterrupted power for precision loads.

2. Full DSP Digital Control Technology

Advanced DSP chip full digital control, generates high-precision pure sine wave output; low harmonic distortion, stable voltage regulation and strong anti-interference performance.

3. Ultra-Wide Input Voltage & Frequency Adaptation

1–3kVA model: 110–300VAC input voltage; 40–70Hz frequency range. 10–20kVA single-phase model supports wide mains fluctuation, effectively reduces battery discharge frequency and extends battery service life.

4. High Input Power Factor PFC Design

Built-in active power factor correction, input PF＞0.99; low total harmonic distortion, eliminates grid pollution and lowers customer electricity cost.

5. Generator Compatible

Wide input voltage & frequency window filters out surge, flicker and distortion generated by generators, supplying clean stable power to servers and communication loads.

6. High Efficiency & Energy Saving

AC mode maximum efficiency up to 95.5%, low idle power consumption; reduces long-term operating electricity expense.

7. Reliable Anti-Dust & Anti-Corrosion Structure

FR4 full glass fiber double-sided PCB, conformal three-proof paint coating, optimized air duct design; prevents dust accumulation and circuit corrosion, strong environmental adaptability.

8. Powerful Open Customization Architecture

Powerful DSP core with open control architecture, supports secondary development and docking with automatic control & intelligent monitoring systems.

9. Strong Load Adaptability

Auto-adaptive 50/60Hz dual frequency system; output voltage optional 208/220/230/240VAC, fully compatible with global standard IT equipment. Output power factor reaches 1.0 for full power range.

10. Complete Intelligent Monitoring & Communication Ports

Standard LCD display to view working mode, load rate, input/output voltage, battery status; standard USB & RS232 ports; optional EPO emergency power off, dry contact card, SNMP network management card for remote monitoring.

CONSNANT CNH110R series 1–20kVA single-phase rack high-frequency online UPS integrates zero transfer time online technology, DSP full digital control, high-efficiency PFC and ultra-wide grid adaptation. The full power range from 1kVA to 20kVA meets diversified power demand of small, medium and large IT rooms. Rack-mounted compact structure saves cabinet space, built-in/external battery dual options match different backup time requirements. With reliable hardware design, complete monitoring functions and flexible customization, it is the ideal uninterruptible power supply for mission-critical single-phase loads.

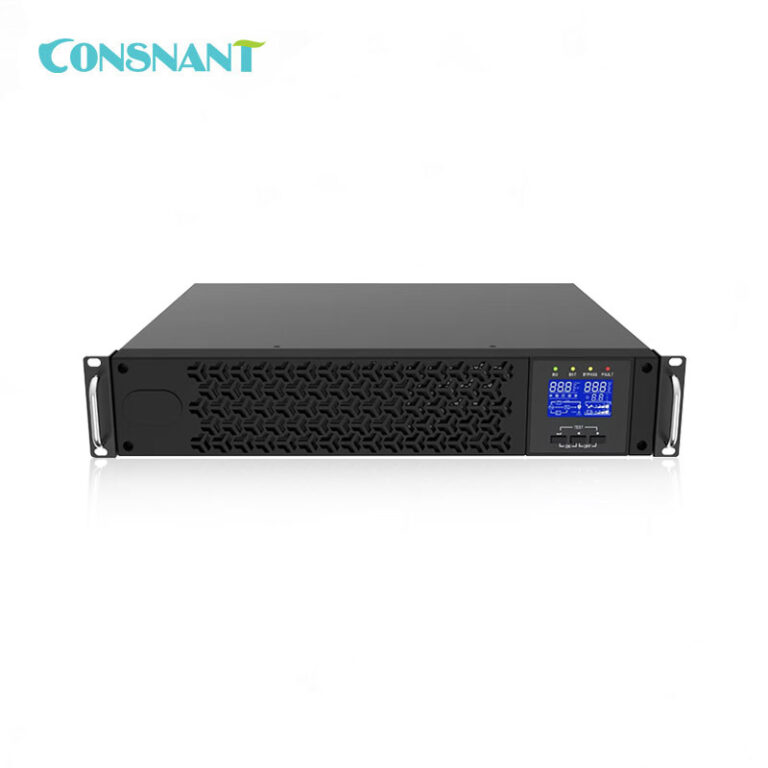

CNH110R 1-3KVA

Model	CNH110R 1KS / CNH110R 1KL		CNH110R 2KS	CNH110R 2KL	CNH110R 3KS / CNH110R 3KL
Capacity	1kVA/1kW		2kVA/2kW		3kVA/3kW
Input
Rated Voltage	208/220/230/240Vac,L+N+PE
Voltage Range	110~300Vac
Frequency Range	40-70Hz
Power Factor	≥0.99
THDi	≤4%(linear load);≤5%(non-linear load)
Output
Rated Voltage	208/220/230/240Vac,L+N+PE
Voltage Regulation	±1%
Frequency	50/60Hz±0.1%
THDu	≤2%(linear load);≤5%(non-linear load)
Transfer Time	Zero
Waveform	Pure sine wave
Crest Factor	3:1
Overload Capacity (Line Mode)	102%~110%load,30min;110%~130%load,10min; 130%~150%load,30s;>150%load,200ms
Overload Capacity (Battery Mode)	102%~110%load,1min;110%~130%load,10s; 130%~150%load,3s;>150%load,200ms
Efficiency
Line Mode	94.5%		95.5%		95.5%
Battery Mode	88.5%		91.5%		91.5%
ECO Mode	98%
Battery
Nominal Voltage	24Vdc/36Vdc		48Vdc/72Vdc		72Vdc/96Vdc
Battery Number	7Ah2/3pcs	External	7Ah*4/6pcs	External	7Ah*6/8pcs	External
Charge Current	1A	1-12A	1A	1-12A	1A	1-12A
Communication
Interface	RS232/USB/SNMP card(optional)/Dry contact card(optional)
Environment
Operation Temperature	0~40℃
Humidity	0~95%(non-condensing)
Noise	≤50dB@1meter away
Altitude	Up to 1000m without derating
Physical
Dimensions (WDH)mm	44037986	44037986	44056886	44045086	44071986	44045086
Weight(kg)	11.1/13	6	18.7/22.5	8	24.4/27.8	10.8

CNH110R 6-10KVA

Model	CNH110R 6KS	CNH110R 6KL	CNH110R 10KS	CNH110R 10KL
Capacity	6kVA/6kW		10kVA/10kW
Input
Rated Voltage	208/220/230/240Vac,L+N+PE
Voltage Range	110~300Vac
Frequency Range	40-70Hz
Power Factor	≥0.99
THDi	≤5%(linear load);≤8%(non-linear load)
Output
Rated Voltage	208/220/230/240Vac,L+N+PE
Voltage Regulation	±1%
Frequency	50/60Hz±0.1%
THDu	≤2%(linear load);≤5%(non-linear Load)
Transfer Time	Zero
Waveform	Pure sine wave
Crest Ratio	3:1
Overload Capacity (Line Mode)	102%~105%load,30min;105%~125%load,10min; 125%~150%load,30s;>150%load,500ms
Overload Capacity (Battery Mode)	102%~105%load,10min;105%~125%load,1min; 125%~150%load,10s;>150%load,500ms
Battery
Battery Type	Sealed lead acid maintenance free
Nominal Voltage	192Vdc/240Vdc
Battery Number	7Ah*16pcs	External	9Ah*16pcs	External
Charging Current	1A	1-12A settable	1A	1-12A settable
Efficiency
Line Mode	95%
Battery Mode	94.5%
ECO Mode	98%
Communication
Interface	RS232/USB/SNMP card(optional)/Dry contact card (optional)
Environment
Operation Temperature	0~40℃
Humidity	0~95%(non-condensing)
Noise	≤50dB@1meter away
Altitude	Up to 1000m without derating
Physical
Dimensions (WDH)mm	440x753x173	440x487x86	440x753x173	440x487x86
Weight(kg)	58	11	61.3	12

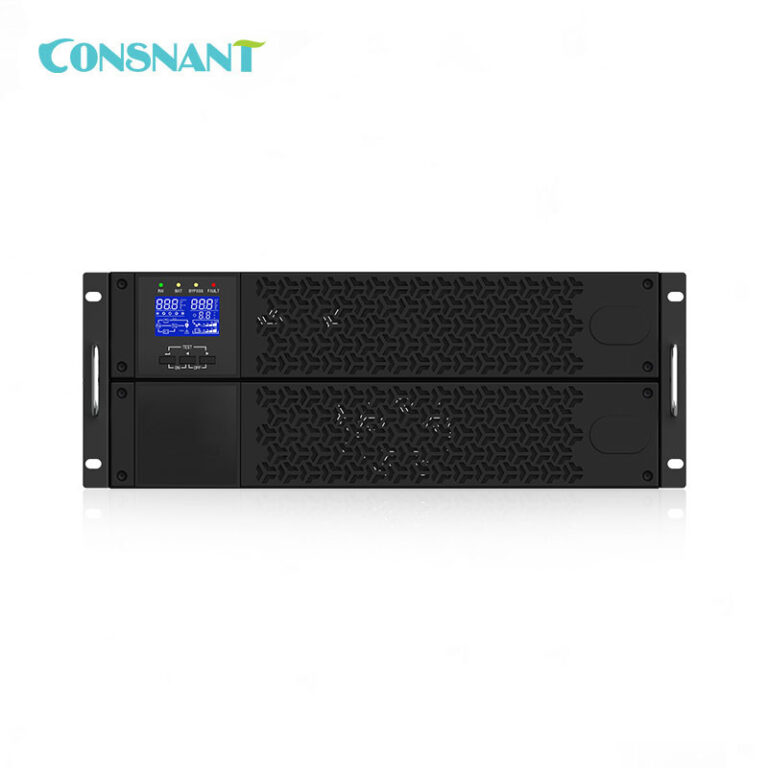

CNH310R 10-20KVA

Model	CNH310R 10KL	CNH310R 15KL	CNH310R 20KL
		CNH110R 15KL	CNH110R 20KL
Capacity	10kVA/10kW	15kVA/15kW	20kVA/20kW
Input
Rated Voltage	220/230/240Vac L+N+PE or 380/400/415Vac,3Ph+N+PE
Voltage Range	156~520Vac
Frequency Range	40~70Hz
Power Factor	≥0.99
Output
Rated Voltage	208/220/230/240Vac,L+N+PE
Voltage Regulation	±1%
Frequency	50/60Hz±0.1%
THDu	≤2%(linear load);≤7%(non-linear load)
Transfer Time	Zero
Waveform	Pure sine wave
Crest Ration	3:1
Overload Capacity (Line Mode)	105%~125%load,10min; 126%~150%load,1min; >150%load,100ms
Overload Capacity (Battery Mode)	105%~125%load,1S; >126%load,100ms
Battery
Battery Type	Sealed lead acid maintenance free
Nominal Voltage	190Vdc/240Vdc
Battery Number	External
Charging Current	1-12A
Efficiency
Line Mode	94%
Battery Mode	92%
ECO Mode	98%
Communication
Interface	Rs232/USB/SNMP card(optional)/Dry contact card (optional)
Environment
Operation Temperature	0~40℃
Humidity	0~95%(non-condensing)
Noise	≤55dB @1 meter away
Altitude	Up to 1000m without derating
Physical
Dimensions(WDH)mm	440612173(4U)	440612173(4U)	440612173(4U)
Weight(kg)	25.6	25.6	26.1

All specifications are subject to change without prior notice.

What is the core difference between CNH110R and tower-type CNH110 series?

CNH110R is rack-mount model (R stands for Rack), designed for 19-inch standard server cabinet installation; CNH110 is vertical tower UPS for floor standing. They share identical circuit, power rating and performance parameters, both 1–20kVA single-phase high-frequency online double-conversion UPS, including built-in battery S models and long-run external battery L models.

How many rack U units does CNH110R occupy? Can it be used both rack and tower?

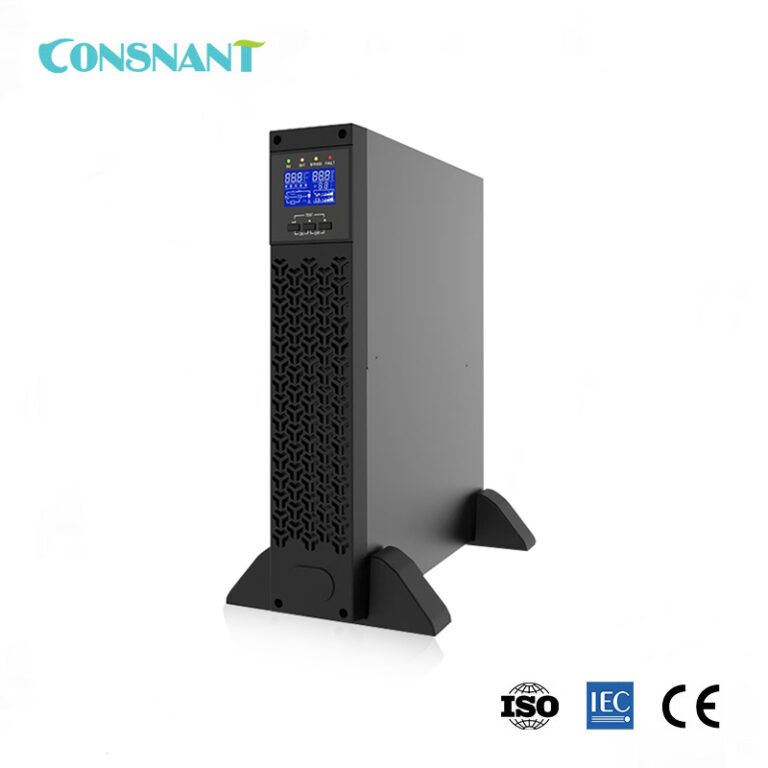

Full series for 19-inch rack mounting, with supporting brackets for vertical floor placement, dual-purpose design. 10/15/20R fits standard server rack U space.

What protection functions are equipped? What is overload protection logic?

Integrated lightning surge, overvoltage, undervoltage, overload, short-circuit, overheat multi-protection: Line mode: 105%–125% load sustain 10 mins; 126%–150% load sustain 1 min; shut down within 100ms above 150% load. Battery mode: Fast shutdown within 1 second when load exceeds 105%.

Will product specifications be updated without prior notice?

Products are continuously upgraded and optimized. Dimensions, parameters and configurations subject to change without prior notice. Please confirm the latest datasheet with sales before order placement.
