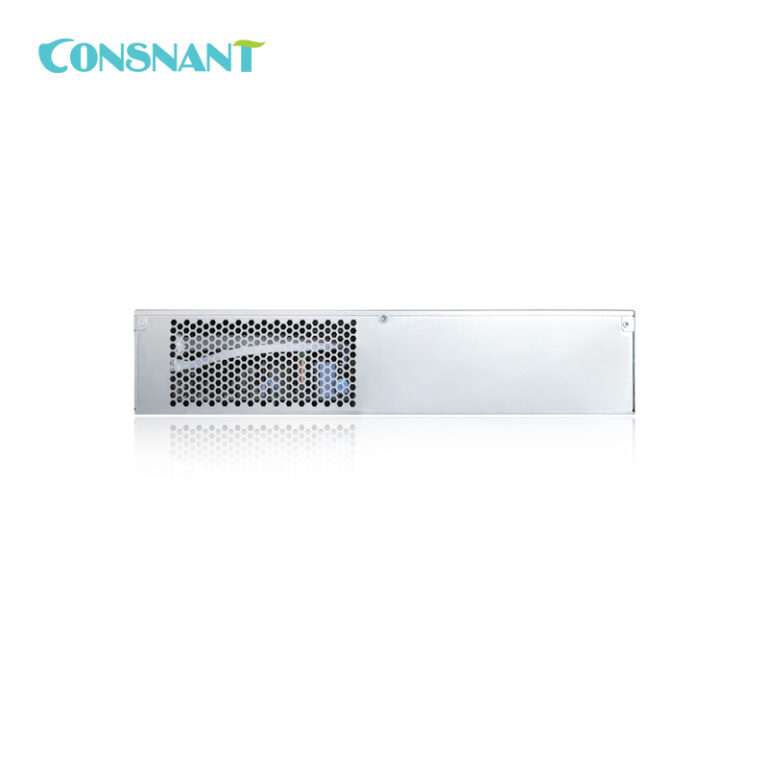

CNHR112 Series 1-10KVA Outdoor Online UPS Module

Model : CNHR112 1-10KVA

Nominal Capacity: 1-10KVA

Nominal Voltage: 220VAC

Maximum Input Voltage Range: 90 – 300VAC

Nominal Frequency: 50/60HZ

Application field:

Data Center
Telecom
Local Area Networks
Servers

Chat Now

Description

The CNHR112 series 1-10KVA outdoor online UPS module is an industrial-grade uninterruptible power supply specially developed for outdoor cabinet integration and various outdoor engineering projects. Adopting a mature and reliable true double-conversion online architecture with zero transfer time, the equipment comprehensively defends against various grid abnormalities and power quality problems. It provides continuous, stable and clean power supply for mission-critical loads, perfectly adapting to complex outdoor working conditions and industrial power supply scenarios.

Feature：

Equipped with advanced full DSP digital control system and digital active PFC power factor correction technology, this UPS achieves an input power factor of over 0.99, which effectively suppresses grid harmonic pollution, reduces energy consumption and saves operational power costs for users. Meanwhile, it delivers ultra-pure standard sine wave AC power with extremely low distortion rate through superior power regulation performance, ensuring high-quality power supply for backend equipment.
Targeting the complex outdoor grid environment with severe voltage and frequency fluctuations, the series features ultra-wide grid adaptability. It supports an ultra-wide input voltage range of 90V~300V and a frequency range of 40~70Hz, which significantly reduces frequent battery discharge and effectively prolongs battery service life. Boasting excellent load capacity, the product comes with a standard output power factor of 0.9 (1.0 optional) and automatically adapts to 50/60Hz frequency with selectable output voltage, fully compatible with various industrial equipment and project applications. In addition, it works stably with various gensets, isolating genset voltage fluctuations and noise interference to ensure stable and clean power output during power failure switching and genset power supply.
In terms of hardware reliability, the product adopts high-standard industrial design, equipped with high-strength FR4 fiberglass double-sided PCB and wide-temperature resistant components for superior hardware stability. With a scientifically optimized full-range ventilation and heat dissipation structure as well as full-machine conformal coating, it effectively prevents dust accumulation and resists harsh outdoor conditions including humidity, corrosion and drastic temperature changes. This greatly enhances the long-term continuous operation reliability and enables all-weather outdoor operation.

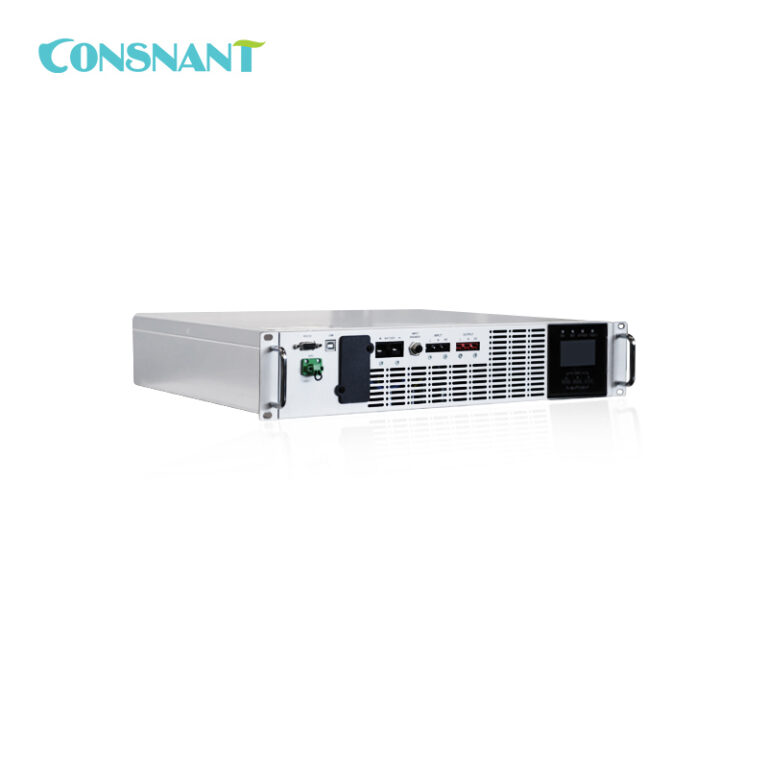

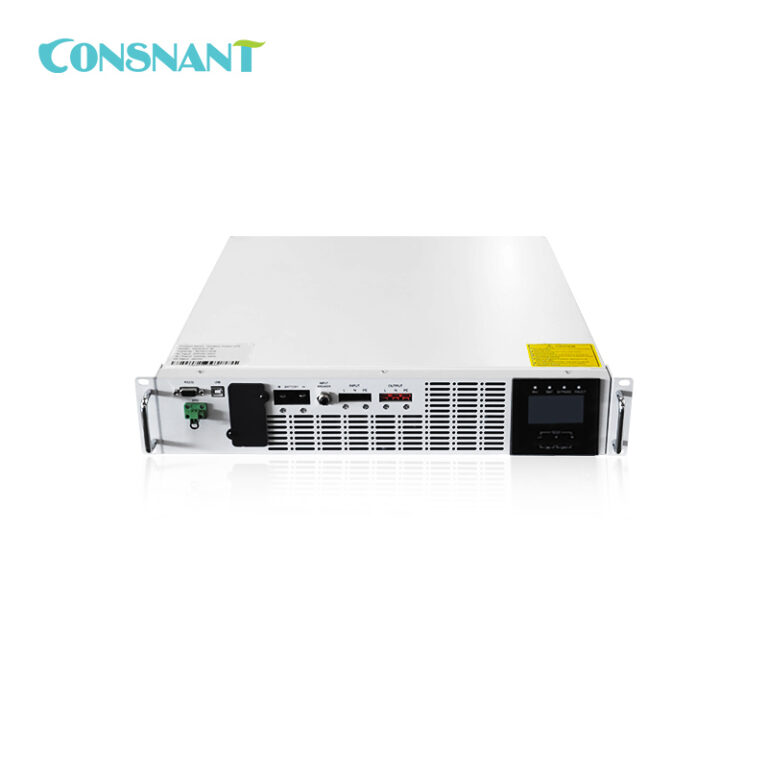

Combining excellent practicability and scalability, the UPS adopts front maintenance terminals. The input, output and battery terminals support online hot plugging and unplugging, allowing maintenance without shutdown and greatly reducing operation difficulty and downtime loss. The module is applicable for standalone outdoor use and embedded installation in outdoor cabinets, with a freely adjustable vertical and horizontal display screen to adapt to different cabinet layouts and on-site installation requirements. Based on a high-performance controller and open architecture, the product supports customized functions and can be seamlessly integrated with automatic control systems and intelligent monitoring systems to meet the customized development demands of various intelligent and integrated projects.

Product service:

1. Pre-sales consultation; After-sales worry-free.

2. Support ODM and OEM.

3. Online guidance and Technical support.

Technical parameters:

Model		CNHR112-1KR	CNHR112-1KRS	CNHR112-2KR	CNHR112-2KRS	CNHR112-3KR	CNHR112-3KRS
Capacity	VA/W	1kVA/900W（Optional 1KW）		2kVA/1.8kW（Optional 2KW)		3kVA/2.7kW（Optional 3KW)
Topology		Double Conversion Online UPS
Phase		Single Phase Input Single Phase Output
Mains Input	Wiring	L/N+PE
	Rated Voltage	208/220/230/240VAC
	Voltage Range	90~300VAC
	Frequency Range	40Hz-70Hz
	Input Power Factor	≥0.99
AC Output	Wiring	L/N+PE
	Output Voltage	208/220/230/240VAC
	Voltage Regulation	±1%
	Output Frequency	50/60±4Hz(Sync Mode) / 50/60Hz±0.1%(Free Run)
	Waveform	Pure Sine Wave
	Distortion	<2%(Linear Load)
	(THDV%)	<7%(None-Linear Load)
	Over load capability	1Min@105%~125%Rated Load 30Sec.@125%~150%Rated Load 0.5Sec.@>150%Rated Load
Efficiency	AC/AC Mode	0.88		0.89		0.9
	DC/AC Mode	0.86		0.87		0.88
Battery&Charge	Rated Battery Voltage	48VDC (Optional lithium battery)External
	Battery Capacity	12V/7AHx4pcs(External Battery Depends)
	Backup Time	>6mins @ Half Load
	Charging Current	Standard Model with Internal Battery:1A Long Backup Time Model :4A
Physical	Chassis Style	Rack-Mounted
	Rack Dimension	1KR/1KSR/2KR/2KSR/3KSR: 438mm(W) x 88mm(2U)(H) x 360mm(D) 3KR: 438mm(W) x 88mm(2U)(H) x 500mm(D) Include Internal Battery
	Weight (kg)	13	8.5	18.5	11.5	21.9	12
HMI	LCD DISPLAY	Input Mains Voltage, Frequency, Load level, Operation Mode, Health Status
	Standards Communication Interface	1. RS232 PORT
	Optional Extension Card	2. NMC Card: Support remote monitor the UPS via Smart Phone APP, Web page, PC Monitor Software , Support Server / NAS shutdown 3. MODBUS Card 4. USB Card 5. Relay Card (Needs assembly according to order request before shipping
Operating Environment Endurance	Temperature range	-10~50℃
	Relative Humidity	0-98%（Non-condensing）
	Acoustics Noise	<55dB @ 1 meters

Model	CNH110R-6K	CNH110R-10K
Capacity	6KVA/4.8KW (Optional 5.4KW)	10KVA/8KW (Optional 9KW)
Input
Rated Voltage	208/ 220/230/240Vac, L+N+PE
Voltage Range	110~300Vac
Frequency Range	40-70Hz
Power Factor	≥0.99
THDi	≤5%(linear load); ≤8%(non-linear load)
Output
Rated Voltage	208/220/230/240Vac, L+N+PE
Voltage Regulation	±1%
Frequency	50/60Hz±0.1%
THDu	≤2% (linear load); ≤5% (non-linear Load)
Transfer Time	Zero
Waveform	Pure sine wave
Crest Ratio	3:1
Overload Capacity (Line Mode)	102%~105% load, 30min; 105%~125% load, 10min; 125%~150% load, 30s; >150% load, 500ms
Overload Capacity (Battery Mode)	102%~105% load, 10min; 105%~125% load, 1min; 125%~150% load,10s; >150% load, 500ms
Battery
Battery Type	Sealed lead acid / lithium
Nominal Voltage	192Vdc / 240Vdc
Charging Current	1-12A settable
Efficiency
Line Mode	95%
Battery Mode	94.5%
ECO Mode	98%
Communication
Interface	RS232 / USB/ SNMP card(optional) /Dry contact card (optional)
Environment
Operation Temperature	0~40℃
Humidity	0~95%(non-condensing)
Noise	≤50dB@1meter away
Altitude	Up to 1000m without derating
Physical
Dimensions (WDH) mm	443x562x86
Weight (kg)	11	12

Note:

① Battery Capacity and voltage is open to customization.

② Dimension might vary for different bezel.

③ The socket and terminal configuration on the rear panel may be different for countries or regions according to order.

④ More parameter customization，please contact sales representative.
