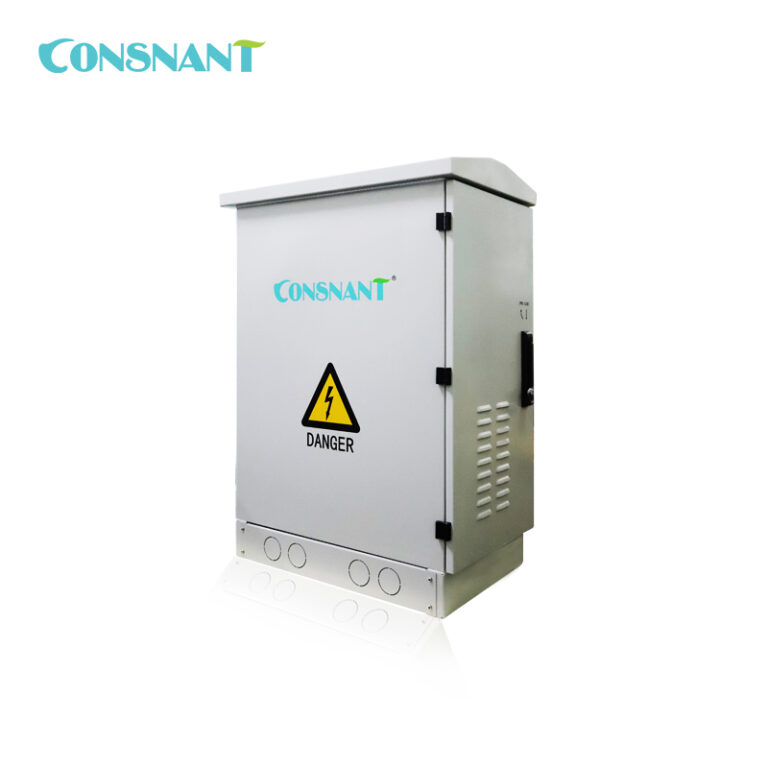

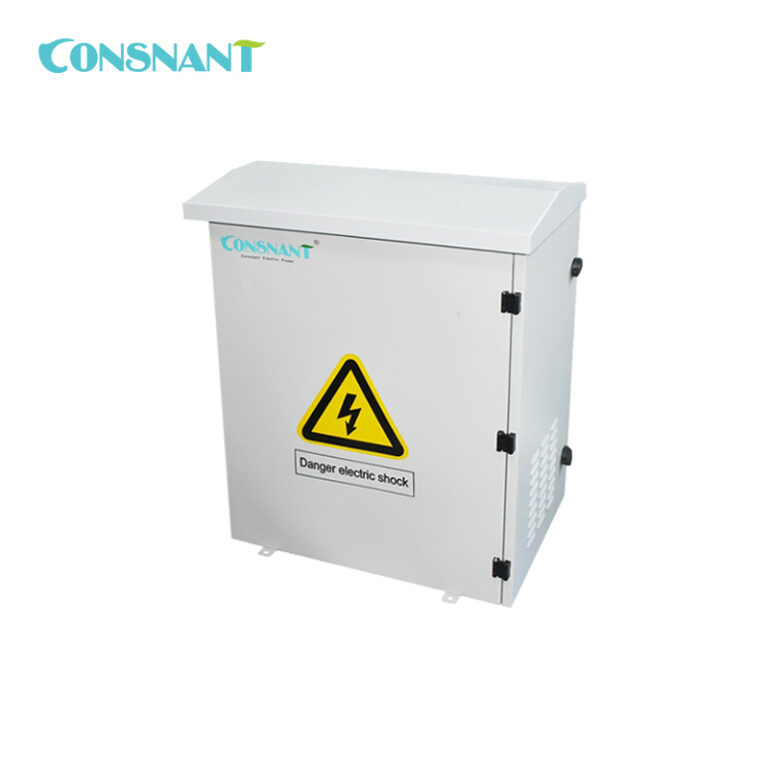

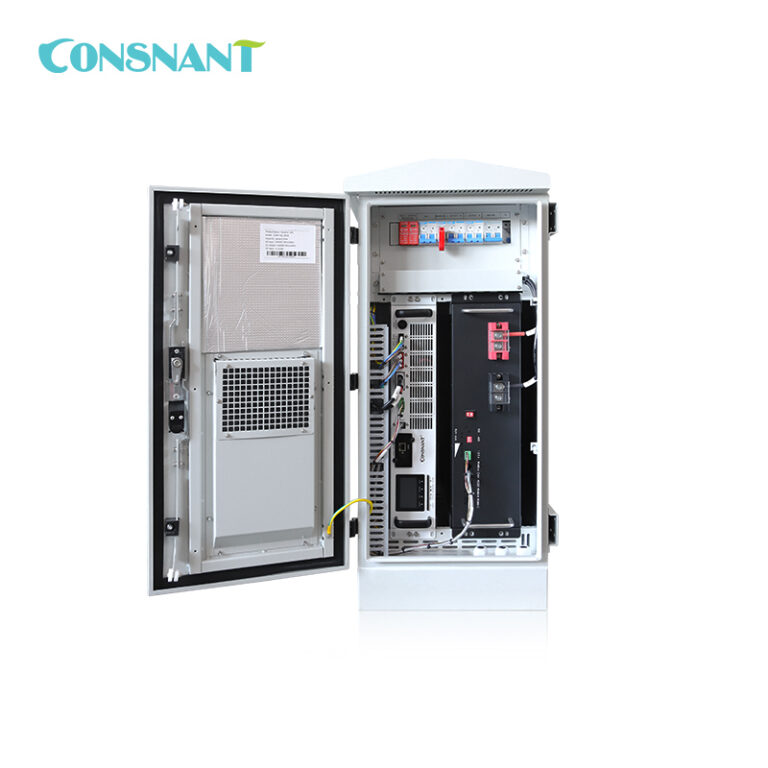

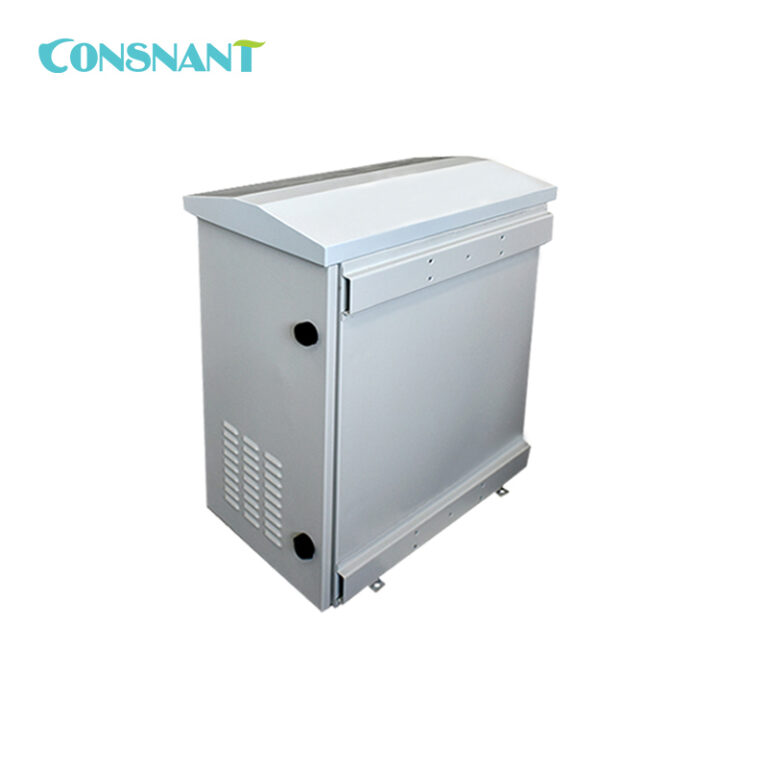

Model Number: CNW110 1-3KVA
Nominal Capacity: 1 – 3KVA
Nominal Voltage: 220VAC
Maximum Input Voltage Range: ±20%
Nominal Frequency: 50/60HZ
Application field:
Product service:
1. Pre-sales consultation; After-sales worry-free.
2. Support ODM and OEM.
3. Online guidance and Technical support.
Technical Parameters
| Model | CNW110-1KVA | CNW110-2KVA | CNW110-3KVA |
| Capacity | 1KVA/0.8KW | 2KVA/1.6KW | 3KVA/2.4KW |
| Nominal voltage | 220/230/240VAC | ||
| Frequency | 50Hz/60Hz | ||
| Input | |||
| Voltage Range | 115-295VAC(±3VAC) | ||
| Frequency Range | 50Hz(46~54Hz); 60Hz(56~64Hz) | ||
| Soft Start | 0~100%5sec | ||
| Power factor | 0.98 | ||
| Output | |||
| Voltage Precision | 220/230/240VAC x (1±2%)VAC | ||
| Frequency Precision | 50Hz/60Hz±0.05Hz | ||
| Power Factor | 0.7/0.8(optional) standard 0.7 | ||
| Wave Distortion | Linear load<3% Non-linear load<6% | ||
| Overload capacity | Overload(110~150%)for 30 seconds, then automatically transfer to bypass. When load is normal, it can automatically transfer to normal mode. | ||
| Crest Factor | 3:1 | ||
| Transfer time | 0ms (AC to DC) | ||
| DC Supply Voltage | 48VDC | ||
| Charging current | 4A/8A(optional) | 4A/8A(optional) | 4A/8A(optional) |
| Battery | |||
| Boot Voltage | 58VDC | ||
| Float Voltage | 56VDC | ||
| Internal Battery Capacity | LifePo4 battery pack 48VDC 50AH or 48VDC 100AH | ||
| Panel display | |||
| LED | Load level/Battery level, Battery indicator, Utility power, Inverter, Bypass, Overload, Fault | ||
| Communications | |||
| Communicate interface | RS232 | ||
| Work Environment | |||
| Temperature | -40±℃-55℃ | ||
| Humidity | 0~95%(Non-condensing | ||
| Storage Temperature | -25℃~55℃ | ||
| Elevation | <1500m | ||
| Physical Characteristics | |||
| Net Weight(KG) | 85 | 125 | 125 |
| Dimension:(W x D x H)mm | 613*640*954 | 650*753*1227 | 650*753*1227 |
