CNS110R 6000-48 Series 6000W Rack Mount Solar Inverter

share

Facebook
LinkedIn
Model：CNS110R 5000/6000/7000-48
Nominal Capacity: 5KW/6KW/7KW
DC Input Voltage:48VDC
Output Voltage: 220VAC/230VAC240VAC±5%
Output Frequency: 50/60Hz±0.1%

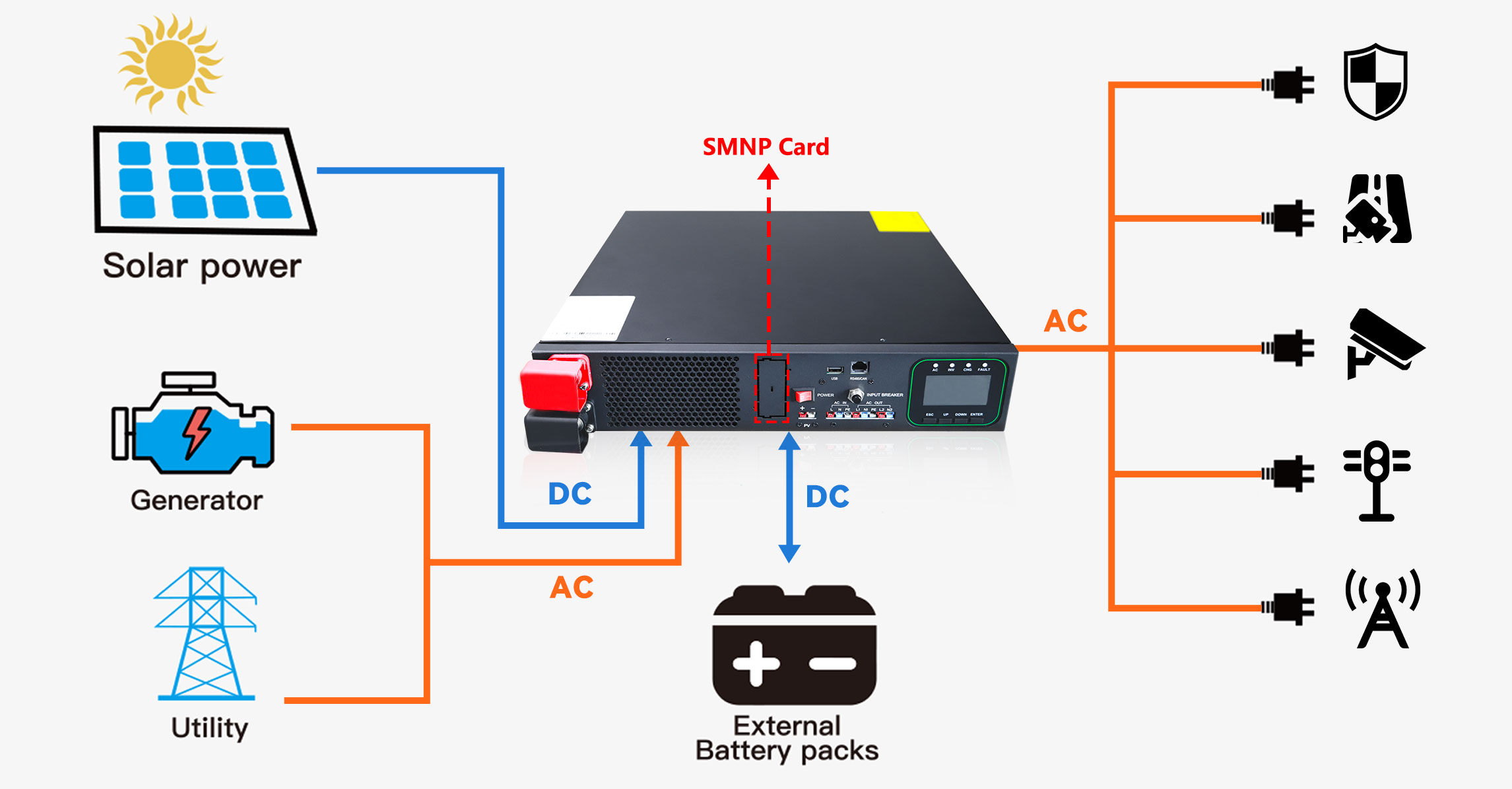

APPLICATION FIELD:
Security
Road Monitors
CCTV
Traffic Lights
Comsat Station
Chat Now
E-mail
Description
The CNS110R 6000-48 is a high-performance 6000W rack-mount off-grid hybrid solar inverter developed for residential, commercial backup and remote independent solar power systems. Adopting industry-leading pure sine wave inversion technology and integrated MPPT solar charging module, this series inverter supports 48V DC battery input and 230V AC output, perfectly matching lead-acid and lithium battery energy storage systems. The standard rack-mounted structure realizes space-saving cabinet installation, convenient system integration and later maintenance, and is widely applicable to household energy storage, villa backup power, remote base stations, industrial and commercial standby power scenarios, providing stable, efficient and reliable green power supply solutions.
Features:
  • Reliable quality , economical design
  • Configurable AC/Solar priority via LCD settings
  • Dual AC output, for smart load management
  • Pure sine wave output, Work without Battery
  • High PV input range 60-450Vdc
  • Built-in 120A MPPT solar charge controller
  • Smart battery charging design to optimize battery life
  • Optional Wi-Fi and Bluetooth intelligent monitoring function
  • BMS communication port

OFF GRID CHARGER & INVERTER

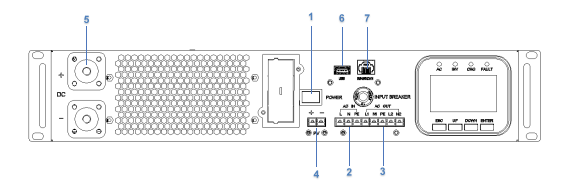

Product Overview

① Power On/Off Switch

② AC Input

③ Dual AC Output

④ PV Input

⑤ Battery Input

⑥ WiFi/GPRS Communication Port

⑦ BMS Communication Port

Model  CNS110R 5000-48 CNS110R 6000-48 CNS110R 7000-48
Rated Power 5000W 6200W 7200W
Parallel function 1~9 NO NO
Output
Output Format L+N+PE
Rated Output Voltage /Frequency 208Vac / 220Vac / 230Vac / 240Vac±5% ; 50/60Hz±0.1%
Transfer Time 10ms, 20ms (Typical)
Overload capacity (battery mode) 1min@102%~120%Load; 10s@＞120%Load
Peak Efficiency (Battery Mode) >91.5% >94%
No-load power consumption <60W <30W
AC Input
Input Format L+N+PE
Rated Input Voltage 208Vac / 220Vac / 230Vac / 240Vac
Input Voltage Range Appliance mode: 90~280V; UPS mode: 170~280V
Input Frequency 40~70Hz±0.1%
Solar charger & AC charger
PV Max. Input Power 6000W 9000W
PV Input Voltage Range 120-500VDC 60-500VDC
MPPT Tracking Voltage Range 120-430VDC 60-450VDC
Max. AC Charging Current 80A 120A
Max. PV Input Current 18A 27A
Max. PV Charging Current 100A 120A
Tracking Efficiency 99.5% max
Battery
Rated Voltage 48VDC
Constant charging voltage (can be set) 56.4VDC
Overcharge Voltage 60.4VDC
Float charging voltage (can be set) 54VDC
Environment
Humidity 20%-95% (Non-condensing)
Operation Temperature 0~50℃（Reduce output power to 80% above 40℃)
Storage Temperature -15~60℃
Altitude Up to 1000m without derating
Noise ≤60dB
Physical
Dimension(W*H*D)(mm) 315*450*110mm / 440*86*470mm(Rack mount)
Net Weight (kg) 9.8
LCD Display Running mode/load/input/output display, etc.,support extended RGB screen
Communication Interface Comm, Type-A, BMS

Product specifications are subject to change without notice.

What battery type is compatible with this inverter?
The CNS110R 6000-48 is designed for 48V battery systems. It is fully compatible with 48V lead-acid batteries, gel batteries, AGM batteries and lithium iron phosphate (LiFePO4) batteries. Users can switch battery types by adjusting the charging parameter settings on the device.
Can it charge batteries via mains or generator?
Yes. The machine supports AC mains and generator auxiliary charging. When solar power is insufficient or the battery is low, the system will automatically charge the battery to ensure continuous power supply.
Can the inverter work without solar panels?
Yes. The inverter can work independently as a battery inverter. It can convert 48V DC battery power to 230V AC power for daily or emergency use without PV connection.
Why is it called rack mount type? What are the advantages?
This inverter adopts standard industrial rack-mounted design, which can be installed inside a standard cabinet. Compared with ordinary vertical inverters, it saves more space, supports centralized management, and is more suitable for commercial energy storage, server room and integrated system projects.
What protection functions does the inverter have?
It provides full safety protection including overcharge, overdischarge, overvoltage, undervoltage, overcurrent, short circuit and overtemperature protection. The device will automatically shut down and alarm under abnormal conditions to protect the whole system.
