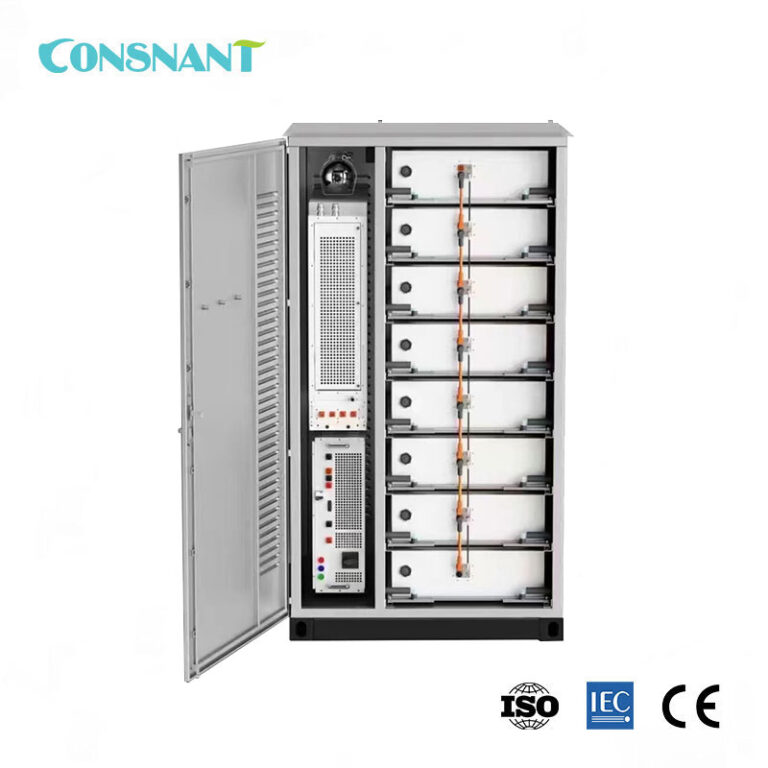

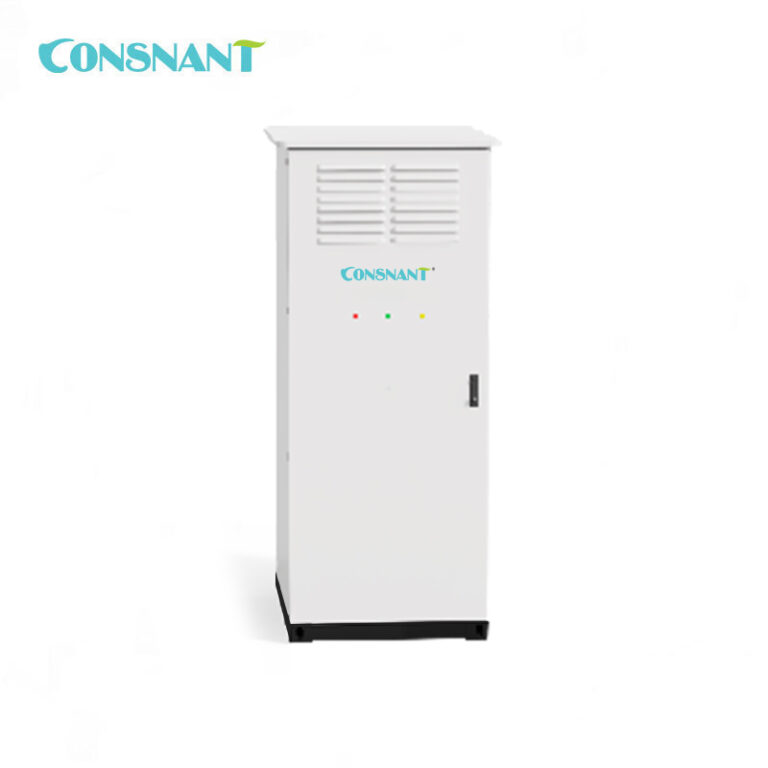

Industrial and Commercial ESS 215kWh/372kWh Energy Storage Cabinet
Model: ESS1-100/215-0.4-L/ESS1-187/372-0.7-L
Nominal energy: 215kWh/372kWh
Working voltage: 600V~876V/1040V~1518V
AC rated power: 100kw/187kw
Operating temperature: -30℃~55℃
Commercial and industrial user side, grid side, power generation side applications.
Aviation-grade 3D Comprehensive Safety System
Adopt energy-storage dedicated LFP lithium iron phosphate cells without cobalt, fundamentally eliminating thermal runaway risks. Equipped with perfluorohexanone active fire suppression + early thermal runaway warning dual fire protection solution. Battery pack reaches IP67 protection level while the whole cabinet is IP54 rated. Precision liquid cooling minimizes cell temperature difference, plus multi-hardware protection of overvoltage, overcurrent, short circuit and insulation monitoring, forming a full safety closed loop of early warning, cooling, fire suppression and pressure relief.
Ultra-high Return on Investment, Payback Period 3-5 Years
Enable full participation in peak-valley arbitrage, demand charge reduction, demand response subsidies and self-consumption of PV power. Levelized Cost of Storage (LCOS) is reduced by 40% with extremely low O&M cost, cutting monthly electricity expenses significantly for enterprises.
Ultra-long Service Life up to 15 Years
Cell cycle life ≥10,000 cycles, the whole system is designed for 15-year stable operation, adapting to all-weather outdoor operation within -30℃ ~ 55℃ wide temperature range.
High Charge-Discharge Efficiency with 100% DOD
System round-trip efficiency ≥92.5%, supporting 100% full depth of discharge with standard 0.5P charge/discharge rate to maximize energy utilization.
Intelligent Cloud O&M Platform, User-Friendly Operation
Independent cloud platform for remote real-time monitoring of voltage, current, temperature, SOC and fault alarms. Support remote parameter configuration, firmware upgrade and automatic system inspection; local touch screen visual operation cuts on-site labor cost largely.
Battery Pack
• Aluminum alloy die-casting box for vehicle, reliable strength
• Vehicle CTP design, highly integrated, high energy density
• Full-time balance and good consistency
• Standard fast plug design, flexible configuration
| Product model | CNESS-K43 | CNESS-K47 |
| Cell type | LFP cell special for energy storage | |
| Group mode | IP48S | IP52S |
| Nominal energy | 154 | 166 |
| Working voltage | 120~175 | 130~190 |
| Rated energy(kWh) | 43.0 | 46.6 |
| Rated charge/discharge ratio | 0.5P | |
| Working temperature(℃) | -30~55 | |
| Protection grade | IP67 | |
| Cooling mode | Liquid cooling | |
| Size(mm) | 766*1050*254 | 766*1125*254 |
| Weight(kg) | 310 | 335 |
Main Application Scenarios：
1. Industrial & Commercial Customer Side: Peak shaving for factories, emergency backup power for data centers & hospitals, electricity cost optimization for commercial plazas, PV-ESS-Charging integrated industrial parks;
2. Grid Side: Load smoothing, grid frequency & voltage regulation, demand response, distribution network capacity expansion, line overload mitigation;
3. Power Generation Side: PV & wind power fluctuation smoothing, curtailed renewable energy absorption, energy storage matching for new energy power stations;
4. Off-Grid Microgrid: Independent power supply for remote factories & island projects to guarantee uninterrupted power for critical loads.
Product service:
1. Pre-sales consultation; After-sales worry-free.
2. Support OEM.
3. Online guidance and Technical support.
Technical Parameters:
| Product model | ESS1-100/215-0.4-L | ESS1-187/372-0.7-L |
| DC side parameters | ||
| Cell type | LFP cell special for energy storage | |
| Group mode | IP240S | IP416S |
| Nominal energy | 215kWh | 372kWh |
| Working voltage | 600V~876V | 1040V~1518V |
| Rated charge/discharge ratio | 0.5P | |
| AC side parameters | ||
| AC rated power | 100kW | 187kW |
| AC maximum power | 120kW | 224kW |
| Rated grid voltage | 380V | 690V |
| Rated grid frequency | 50HZ | 50HZ |
| System parameters | ||
| System efficiency | ≥92.0% | ≥92.5% |
| Discharge depth | 100% | |
| Number of cycles | ≥10000 | |
| Protection grade | IP54(PACKIP67) | |
| Operating temperature | -30℃~55℃ | |
| Cooling mode | Liquid cooling | |
| Fire protection system | Perfluoro+ Active early warning | |
| Size | 900*1300*2200(mm) | 1300*1300*2400(mm) |
| Weight | 2000kg | 3200kg |
Partner with CONSNANT to find the perfect power system for your business. Our technical team is ready to provide customized solutions to optimize power usage and maximize efficiency.
